Label the Space Shuttle Diagram

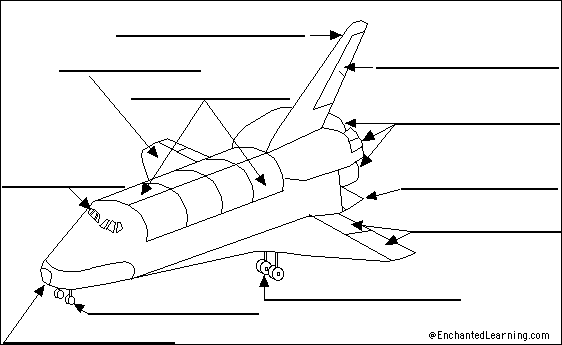

Using the terms listed below, label the Space Shuttle Orbiter diagram.
Zoom Astronomy

Space Shuttle to label

Body flap - a flap located at the bottom rear of the shuttle; it provides a thermal (heat) shield for the engines during re-entry and also provides pitch control (the movement of the nose up and down) during atmospheric flight (landings).
Delta wing - the triangular-shaped wings on either side of the Space Shuttle.
Elevons - flaps located on the trailing edge of each wing, used during atmospheric flight; elevons are used to control pitch (the movement of the nose up and down) and roll. The elevons work only in the presence of air (they do not work in space).
Engines - engines are located at the rear of the shuttle and are used to maneuver the Space Shuttle into orbit, to make adjustments while in orbit, and to control the Space Shuttle during re-entry into the Earth's atmosphere (controling the roll, pitch (the movement of the nose up and down), and yaw (the movement of the nose to the left and right) in the absence of air).
Flight deck - the part of the Space Shuttle in which the astronauts travel; it is in the front of the Shuttle.
Main landing gear - the landing gear (wheels used for landing) located at the rear of the Space Shuttle.
Nose cone - the front of the Space Shuttle.
Nose landing gear - the landing gear (wheels used for landing) located at the front of the Space Shuttle.
Payload doors - the doors of the large storage compartment of the Space Shuttle; Items like satellites can be carried into space in the cargo (payload) bay.
Split rudder/speed brake - a divided flap located on the trailing edge of the tail fin, used during atmospheric flight. This two-part rudder steers the shutte, controls yaw (the movement of the nose to the left and right), and acts as a brake (when the split rudder is opened like book). The rudder works only in the presence of air (they do not work in space).
Vertical tail - the fin at the top rear of the shuttle. It provides stability while flying, and the split rudder is attached to it.
